钢板弹簧总成中心螺栓对照明细

中心螺栓对照表

  • 板簧总成图号 → 对应中心栓图号 → 中心栓规格尺寸
  • 199014520800 → AZ9114520230ZXS → 14*1.5*276
  • 199112520704 → AZ9112520004ZXS → 16*1.5*265
  • 81.43402.6115 → 81.43402.6115ZXS → 16*1.5*150
  • 81.43402.6142 → 81.43402.6142ZXS → 16*1.5*125
  • 81.43402.6155 → 81.43402.6155ZXS → 16*1.5*170
  • 81.43402.6175 → 81.43402.6175ZXS → 16*1.5*135
  • 81.43402.6564 → 81.43402.6564ZXS → 18*1.5*205
  • AZ9100529004 → AZ9100529004ZXS → 14*1.5*163
  • AZ9100529006 → AZ9100529006ZXS → 14*1.5*173
  • AZ9112520004 → AZ9112520004ZXS → 16*1.5*265
  • AZ9114520230 → AZ9114520230ZXS → 14*1.5*276
  • DZ9100520002 → DZ9100520002ZXS → 14*1.5*132
  • DZ9112529004 → DZ9112529004ZXS → 16*1.5*287
  • DZ9114520060 → DZ9114520060ZXS → 14*1.5*204
  • DZ9114520230 → DZ9114520230ZXS → 14*1.5*275

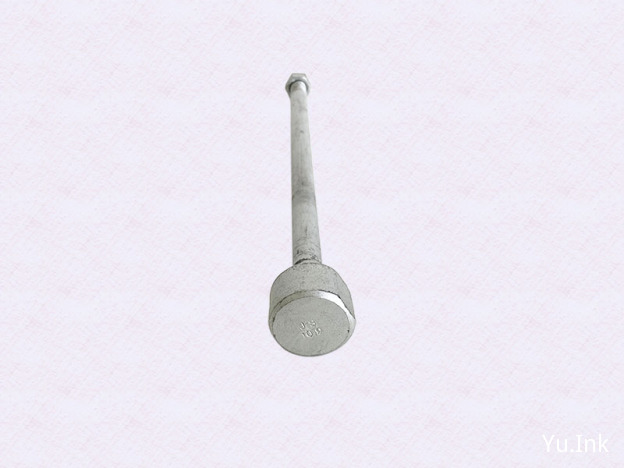

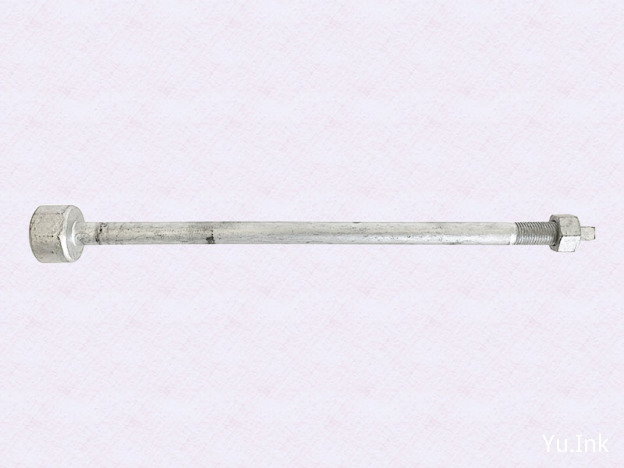

  • DZ9114520240 → DZ9114520240ZXS → 14*1.5*310
  • DZ9114526012 → DZ9114526012ZXS → 18*1.5*278
  • DZ9114526112 → DZ9114526112ZXS → 18*1.5*313
  • DZ9118520003 → DZ9118520003ZXS → 14*1.5*177
  • DZ9118520220 → DZ9118520220ZXS → 14*1.5*311
  • DZ9118520230 → DZ9118520230ZXS → 14*1.5*313
  • DZ9118526013 → DZ9118526013ZXS → 14*1.5*193
  • DZ91259690001 → DZ91259690001ZXS → 14*1.5*272
  • DZ92259521003 → DZ92259521003ZXS → 16*1.5*114
  • DZ95189520506 → DZ95189520506ZXS → 16*1.5*288
  • DZ95259520003 → DZ95259520003ZXS → 18*1.5*134
  • DZ95259520016 → DZ95259520016ZXS → 16*1.5*180
  • DZ95259520505 → DZ95259520505ZXS → 16*1.5*202
  • DZ95259520831 → DZ95259520831ZXS → 14*1.5*335
  • DZ95259690007 → DZ95259690007ZXS → 16*1.5*76
  • DZ95259690618 → DZ95259690618ZXS → 14*1.5*101
  • DZ95259690631 → DZ95259690631ZXS → 14*1.5*116
  • DZ95319521430 → DZ95319521430ZXS → 16*1.5*208
  • DZ95319525105 → DZ95319525105ZXS → 18*1.5*217
  • DZ95319690914 → DZ95319690914ZXS → 14*1.5*233
  • DZ96259520410 → DZ96259520410ZXS → 14*1.5*124
  • DZ96259520459 → DZ96259520459ZXS → 16*1.5*159
  • DZ96259690004 → SZ970000822ZXS → 12*1.25*86
  • DZ96259690014 → DZ96259690014ZXS → 12*1.25*108
  • DZ96259690015 → DZ96259690015ZXS → 12*1.25*122
  • DZ96259690061 → DZ96259690061ZXS → 14*1.5*86
  • DZ96259690084 → DZ96259690084ZXS → 14*1.5*106
  • DZ96259690085 → DZ96259690085ZXS → 14*1.5*103
  • DZ96259690171 → DZ96259690171ZXS → 14*1.5*82
  • DZ96259690172 → DZ96259690171ZXS → 14*1.5*82
  • DZ96319520010 → DZ96319520010ZXS → 14*1.5*264
  • DZ96319520526 → DZ96319520526ZXS → 16*1.5*220
  • DZ96319690023 → DZ96319690023ZXS → 14*1.5*165
  • DZ96319691010 → DZ96319691010ZXS → 14*1.5*150
  • DZ97259690606 → DZ96259690171ZXS → 14*1.5*82
  • JZ93509520104 → JZ93509520104ZXS → 14*1.5*218
  • JZ93509520114 → SZ970000710ZXS → 14*1.5*254
  • JZ93509520632 → JZ93509520632ZXS → 16*1.5*354
  • JZ93629520141 → JZ93629520141ZXS → 16*1.5*352
  • SZ952000017 → DZ9118520220ZXS → 14*1.5*311
  • SZ952000875 → SZ952000875ZXS → 14*1.5*113
  • SZ952000912 → DZ95259520016ZXS → 16*1.5*180
  • SZ952000921 → SZ952000921ZXS → 16*1.5*190
  • SZ952000927 → SZ952000927ZXS → 14*1.5*198
  • SZ952000976 → SZ952000976ZXS → 16*1.5*372
  • SZ970000708 → SZ970000710ZXS → 14*1.5*254
  • SZ970000710 → SZ970000710ZXS → 14*1.5*254
  • SZ970000795 → SZ970000796ZXS → 14*1.5*213
  • SZ970000796 → SZ970000796ZXS → 14*1.5*213
  • SZ970000822 → SZ970000822ZXS → 12*1.25*86
  • SZ970000840 → SZ970000840ZXS → 14*1.5*96

关于钢板弹簧的单片图号定义

关于钢板弹簧总成的单片图号定义,一般按照钢板弹簧装配于整车后的状态(前钢板弹簧多是最上面一片最长,后钢板多是最下面一片最长),由长到短依次为第一片、第二片,依次类推。

具体零件图号的编制规则为:钢板弹簧总成图号后加数字“01”、“02”依次编制;但是对于部分钢板弹簧总成存在双层结构(比如6*2双前轴车型后板簧),那么副簧的单片会在名称中体现为副簧一片、副簧一片进行依次罗列,其图号的编制为:在钢板弹簧总成图号后加数字“001”、“002”等依次编制。

前期板簧中心螺栓的编码会在钢板弹簧总成图号的基础上添加字母“ZXS”进行编制,注意由于部分的板簧中心螺栓存在尺寸一致,因此可以通用,详细的尺寸查看《钢板弹簧总成中心螺栓对照明细》。
